1123343-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1123343-1
Datasheet:
Description:

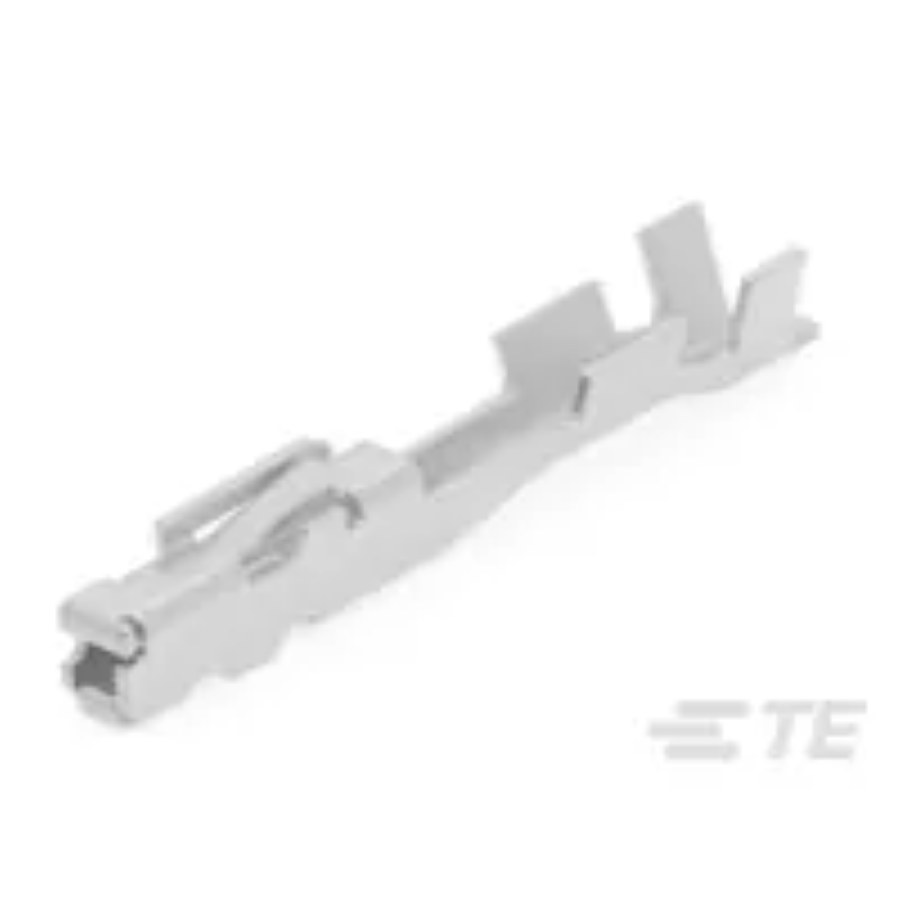

Automotive Connectors Cable Number of Positions:1 Female 24 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 15.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 12 V |
| Depth | 2.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | |
| Current Rating | 4 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| ELV | Compliant |
| Connector Type | Connector, PCB, Signal, Socket |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 1 |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 20 AWG |
| Insulation Diameter | 1.7018 mm |
| Mating Tab Width | 640 µm |
| Tab Thickness | 640 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Wire Gauge Range | 24 AWG to 20 AWG |
| Accessory Type | |
| Termination Style | Crimp |
Stock: 135960
Distributors
pcbx
pcbxUnit Price$0.53422
Ext.Price$0.53422
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53422 | $0.53422 |
| 10 | $0.26711 | $2.67110 |
| 50 | $0.20547 | $10.27350 |
| 100 | $0.15805 | $15.80500 |
| 500 | $0.12158 | $60.79000 |
| 1000 | $0.09352 | $93.52000 |
| 3000 | $0.07194 | $215.82000 |
| 5000 | $0.05534 | $276.70000 |
| 10000 | $0.04257 | $425.70000 |
| 30000 | $0.03445 | $1033.50000 |
